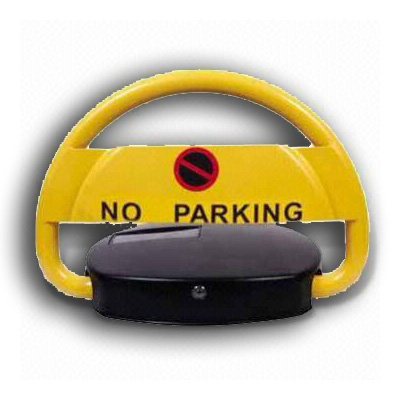

Space lock 04
WORKING POWER (BATTERY)   DC6V/7AH
STATIC CURRENT(MA)  3.5MA
WORKING CURRENT(MA)  3.5A
POWER VOLTAGE(V)  DC6V
WORK TIME/RECHARGE  3 MONTHS
UP OR DOWN TIME(S)  5S
DESCENDED HEIGHT(MM)  320mm
DOWN HEIGHT(MM)  75mm
REMOTE CONTROLLED DISTANCE(M)  《50M
ENVIRONMENT TEMPERATURE  -30℃ ~ +55℃
WEIGHT  10Kg
DIMENSIONS(MM)  380×460×75
EXTER SIZE(MM)  505×498×145
THE NUMBER OF BOXES 20' 824PCS
                                               40' 1728PCS
1, Intelligent remote control parking lock is an intelligent product specialized for car parking, which can effectively prevent the personal parking space from being occupied by other vehicles and bring actual conveniences of personal car parking. Forget the annoyances of manual parking lock and just enjoy the high quality life by high-tech control even without getting off your cars.
2, Intelligent remote control parking lock applied the specially designed chip provided by Microchip Technology Inc in America, the biggest single chip designers and manufacture of the world, and the control circuit board was developed by Zhejiang university ,which bring more controllability and portability and high technical quality to the product.
3, Self-adapting mode is adopted in the remote controller, which has the capability of self-learning compared with the majority of remote controller in the market. “Self-learning” can be made again in case that the remote controller is out of order without being configured back to the manufacturer. Meanwhile, the new generation of acceptance mode is applied, which can provide more stable operation, higher sensitivity, the remote control range reach 50m, and lower environmental requirements compared with the earlier products.
4, Using the most advanced solar photovoltaic conversion technology, a normal charge can use up to one year, it is completely solve the tedious charging operation.
 5, One-time die casting forming in high temperature technology is employed on the moles, which effectively enhanced the overall intension and integrity of the product. The overall pressure resistance ability can be as high as 2 tons and the service life can be as long as 8 years. The product is also featured by easy installation, nice appearance, firm structure and durable application etc.
6, Fully closed type design which is advanced within the industry is applied. Effective waterproofing can be made veritably, and the effective waterproof depth is up to 15cm,the index of waterproof can reach international standard IP65, and the available environmental temperature can be up to minus 30 degrees. Can be normal used in all environments.
7, 90-degree one-way rocker is designed with automatic resetting ,manual control and alarming functions. Dual protection functions is designed inside that when the rocker arm has been blocked for 7 seconds or the internal current is over 5A, the system will disconnect the power supply automatically to make effective protection on the operation safety of the parking lock. And after the external force is removed, the rocker arm will reset and resume operation automatically.
