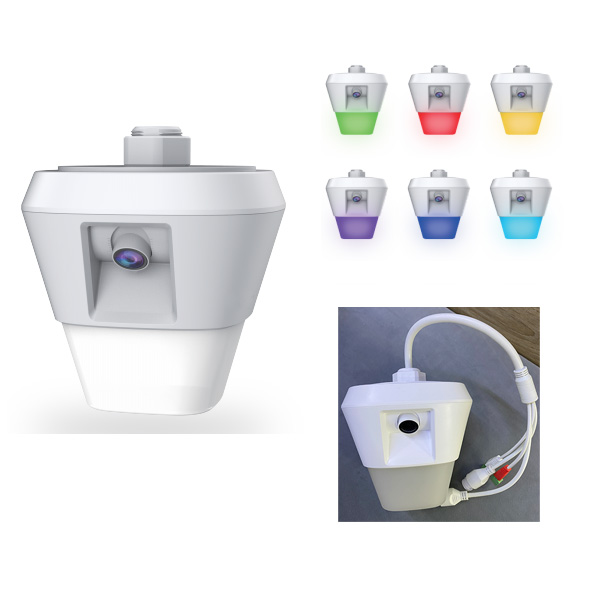

Camera for Parking guidance system


- It can detect the parking spaces free or occupied and the LED will indicate the space status (red/green/blue or other color).
- It can take pictures of car with plate number and send it to back office.
- It has one or two lens to monitor 1~3 or 1~6 parking spaces.
- SDK provided, easy to be integrated with your ANPR Parking guidance system.

Technical Specififications:

Image: 3MP 1~6 parking spaces dome camera
Sensor:1/2.8" starlight-level CMOS
Max Resolution:   2304 X1296
Lowest Illumination:  0.01Lux (Color) Supports VZintelligent ISP
ISP:   Scene-adaptive
Lens:  Standard 2.8mm prime lens
Data Output Standard:  H.265/H.264MJPEGintelligent detection structured data output
Parking Space Status Detection:  ≥99%
Car picture capture rate: ≥99%
SDK: Provided
Protocols:   ONVIF, HTTP, TCP/IP, NTP

Network Interface:  2-channel 10/100Mbps adaptive RJ45, supporting hand-in-hand network connection mode
Other Interface:  RS485, 1 channel (Standard), external light interface: 3 channels (optional 1 parking space and 1 external light )
Indicator Light Status:  7 colors
Size:   129mm(L)×129mm(W)×122mm(H)
Basic Service:  support various 2nd development
